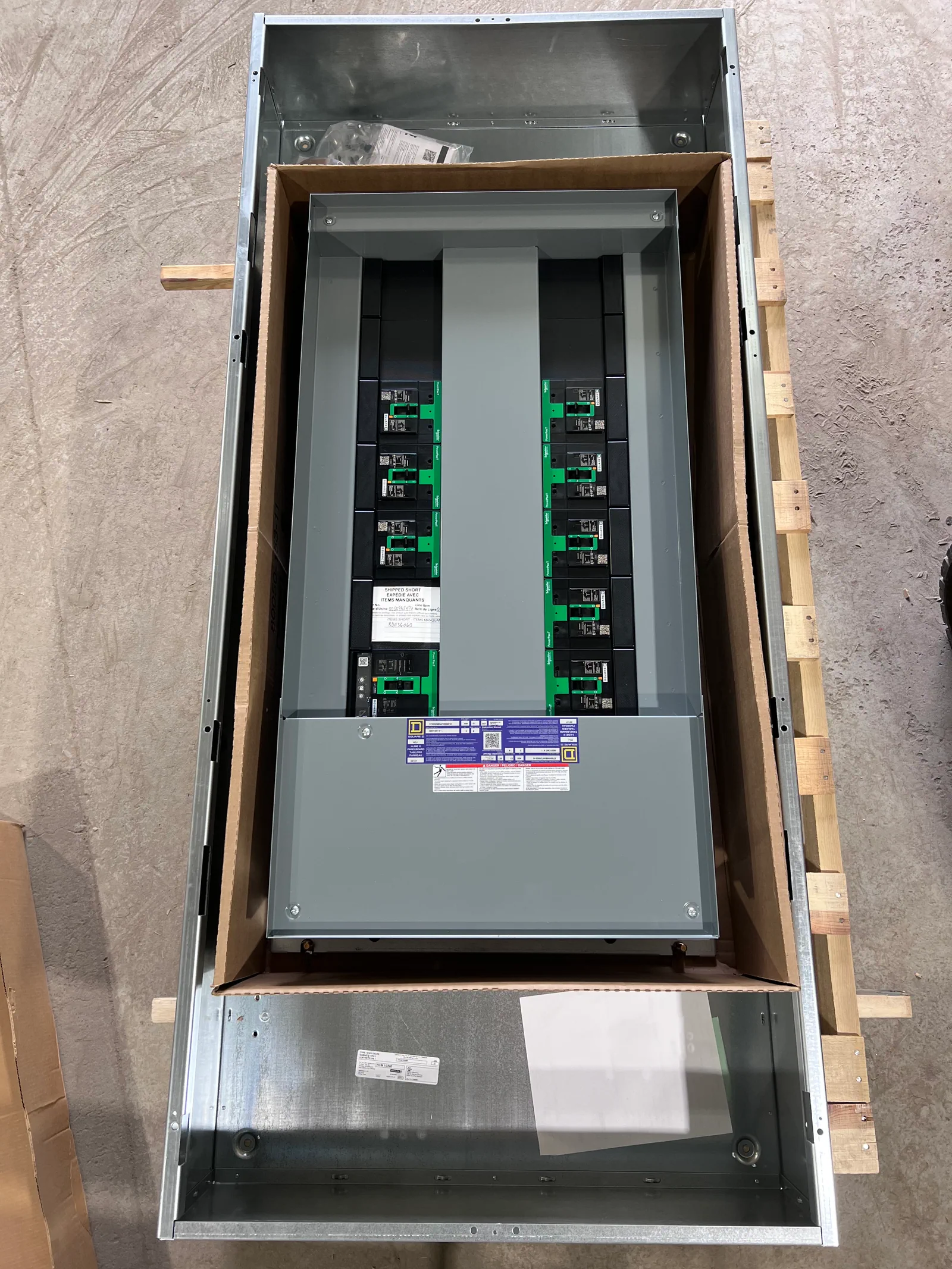

400 A 600/347 V 3Ø 42 circuits Electrical Panel
Ref: FEL-0909
Notes
14 Ka MAX FRAME SIZE J ON LEFT AND J ON RIGHT ALU BUS TIN PLATED
Specifications
| Electrical | |
|---|---|
| Amperage | 400 A |
| System Voltage | 600/347 V |
| Phase | 3Φ |
| Conductors | 4 |
| Operation | |
| Frequency | 60 Hz |
| Max Circuits | 42 |
| Configuration | |
| Application type | Molded case breaker |
| Mounting Type | Plug-in |
| Environment | |
| NEMA Rating | 2 |
| Physical | |
| Dimensions | 2′8″ × 6′1″ × 10″ |
