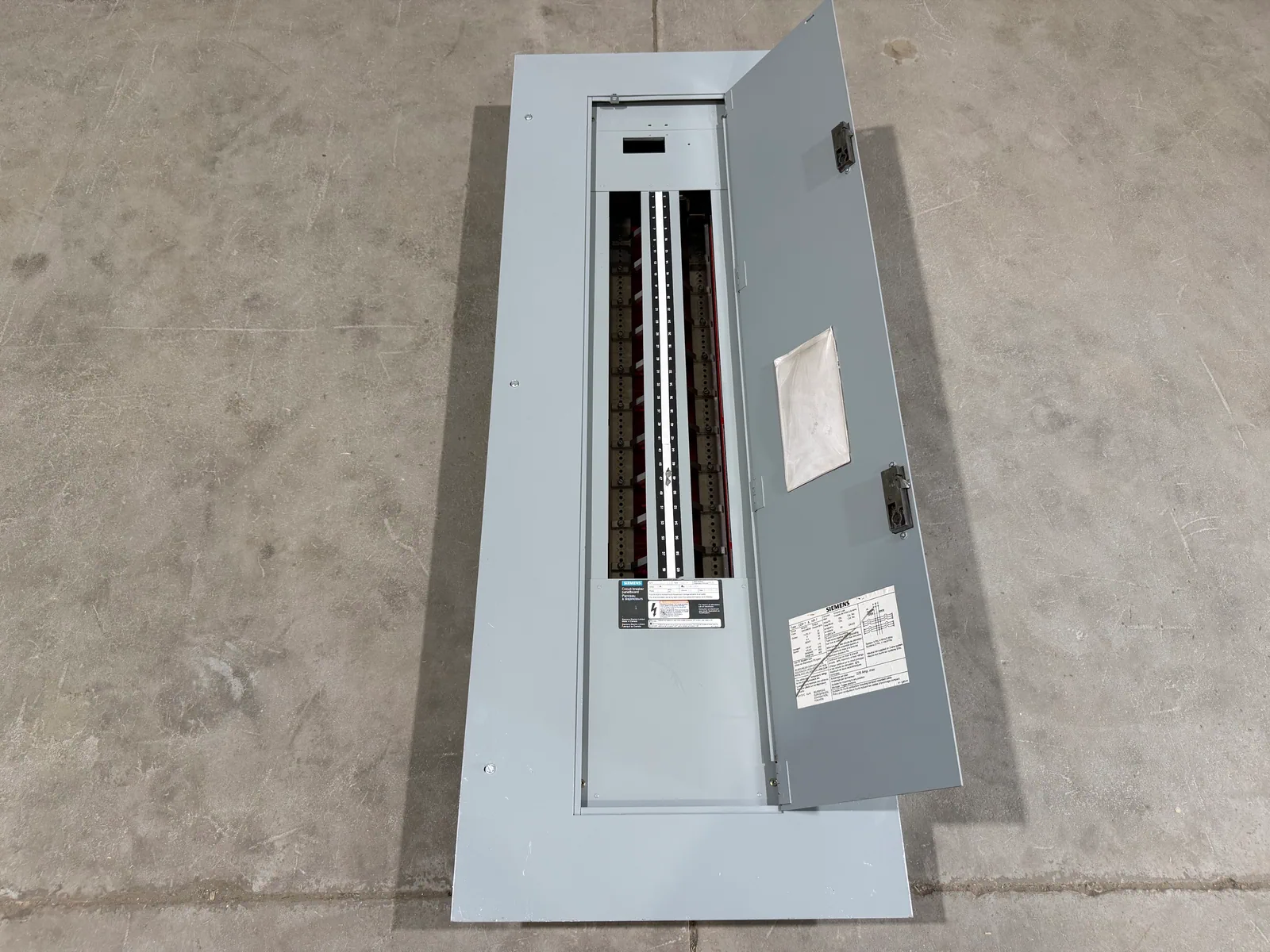

400 A 208/120 V 3Ø 60 circuits Electrical Panel
Ref: FEL-1119
Notes
possibilite to add breaker in the bottom of the panel 225a frame max
Available
Qty 1
Brand
Siemens
Model
CDP-7
Catalog Number
ASDQBDS
Reference
FEL-1119
Location
St-Jérôme
Condition
Refurbished
Quantity
1
Specifications
| Electrical | |
|---|---|
| Amperage | 400 A |
| System Voltage | 208/120 V |
| Phase | 3Φ |
| Conductors | 4 |
| Operation | |
| Frequency | 60 Hz |
| Max Circuits | 60 |
| Configuration | |
| Main type | Main lug |
| Application type | Breaker |
| Mounting Type | Bolt-on |
| Physical | |
| Dimensions | 1′8″ × 4′11″ × 6″ |
Compatibility
Compatible breaker frames
BQ
BQ
